RF-Elements, UltraDish TP 550mm 5GHz 27dBi - 4 PACK, ULD-TP-550-4PK

RF-Elements, UltraDish TP 550mm 5GHz 27dBi - 4 PACK, ULD-TP-550-4PK

RF Elements
SKU:
ULD-TP-550-4PK
$575.00
Current Stock:

Out of stock, but we may be able to make magic happen!

Contact Us
Description

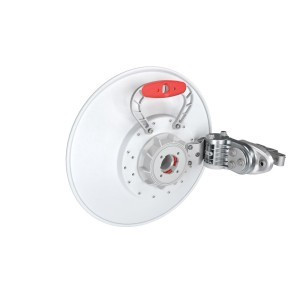

RF-Elements, UltraDish TP 500mm 5GHz 27dBi, ULD-TP-500

UltraDish™ TP 400’s are designed for CPE or PtP connections. The antenna reflector is made from an aluminum alloy to ensure a very uniform shape. Our virtually lossless TwistPort™ connector guarantees easy radio deploymentand maintenance.Antenna installation is extremely easy and ensures rapid deployment for large scale projects. Our innovative antenna mount fits a wide range of pole diameters and can be easily swapped for right or left side mounts. A single HEX tool is all you need to perform your installation.

  • Antenna ConnectionTwistPort™ - Quick Locking Waveguide Port
  • Antenna Type Parabolic Dish
  • Enviromental IP65
  • Pole Mounting Diameter 22-80 mm
  • Gain 27.5 dBi
  • Azimuth Beam Width -6 dBH 8° / V 8.5°
  • Elevation Beam Width -6 dBH 8.5° / V 8°
  • Azimuth Beam Width -3 dBH 6° / V 6.5°
  • Elevation Beam Width -3 dBH 6.5° / V 6°
  • Front-to-Back Ratio (Min)37 dB
Product Downloads
RF-Elements, UltraDish 550mm Datasheet
Additional Information
